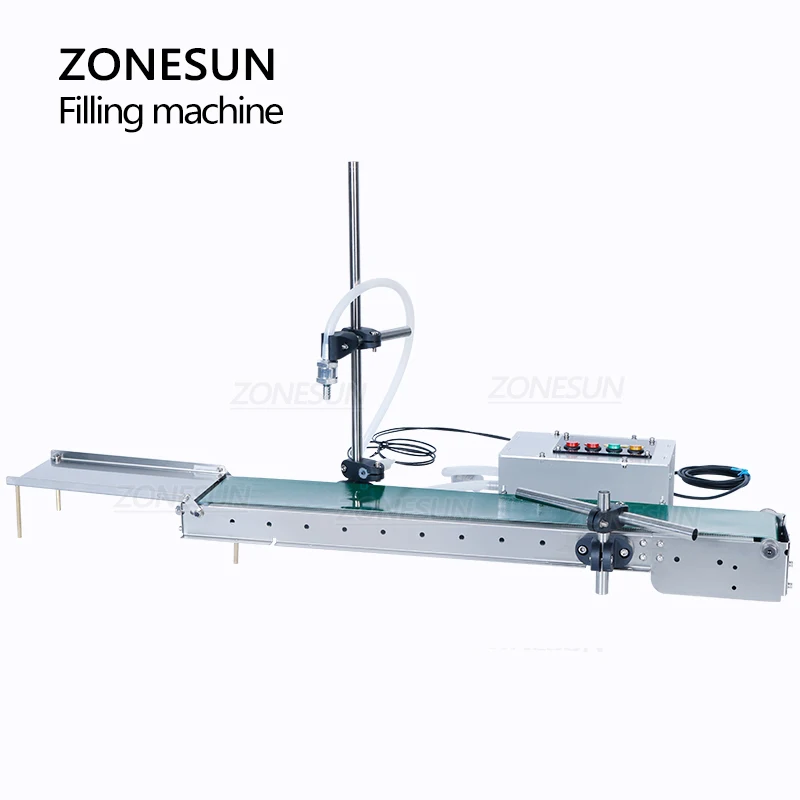

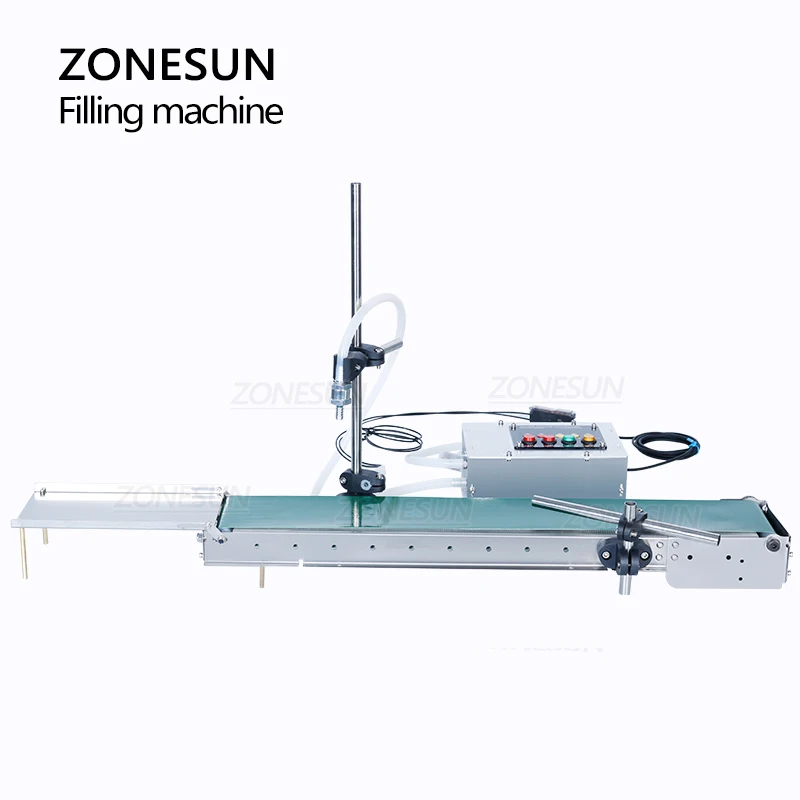

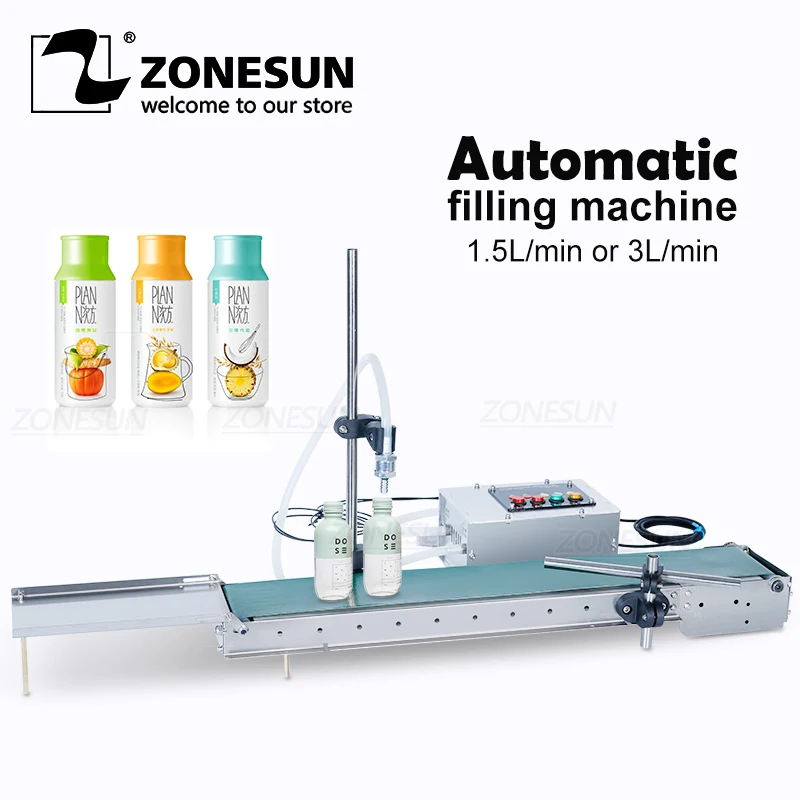

Review ZONESUN Automatic Perfume Oil Filter Beverage Water Bottle High Precision Heat Resistance Liquid Filling Machine



Good Chance for ZONESUN Automatic Perfume Oil Filter Beverage Water Bottle High Precision Heat Resistance Liquid Filling Machine

If You want to buy for , then ZONESUN Automatic Perfume Oil Filter Beverage Water Bottle High Precision Heat Resistance Liquid Filling Machine may be make you like

Buy ZONESUN Automatic Perfume Oil Filter Beverage Water Bottle High Precision Heat Resistance Liquid Filling Machine Right Here and Right Now and You will save  USD 11.7 or 10%%, Because price is will changed at any time without notice, or stock may be run out, If You Buy Now You Just Pay For  105.30, not in Reguler Price at  117.00. Yap! This is I mean you will Save  10% % /  USD 11.7

http://cloud.video.taobao.com/play/u/2675628091/p/1/e/6/t/1/291535742527.mp4

Addition Information of ZONESUN Automatic Perfume Oil Filter Beverage Water Bottle High Precision Heat Resistance Liquid Filling Machine

Product Rank : [RANK] at Keyword
Reguler Price :  117.00
Discount Price : 105.30
Category ID : 6
Category Name : Home Appliances
Saving   :  USD 11.7
Discount : 10%
Rank : [RANK]  From
Last Stock Available : (When this Article was written).



Parameter:

Machine pump:Diaphragm Pump

Voltage: 220V/110V   50-60Hz

Power: 60W

Max filling volume: 3L

Bottle height: ≤30cm

Bottle diameter:≤8.1cm

Power supply device input voltage: 100-240V

Machine input voltage: 12V 5A  DC power supply

Filling time: 0-999s

Filling speed: 0-99

Filling accuracy: ±1%

Intelligent sensing distance: ≤1cm

Anti-dripping Function: Available

Application:

It can be used to fill low-viscosity liquid that is without particles, such as water,beverage,sauce,juice,soybean milk,toner,etc. The filling liquid must be without foam. This machine is small, which is an ideal choise for the small production.

Description:

1.The filling nozzle of the machine has anti-dripping function, which can keep the conveyor clean.

2.Equipped with an intelligent eye, making the filling process more efficient.

3.With heat resistance function, can fill liquid that is about 100℃.

4.The inlet and outlet tube can be removed and replaced.

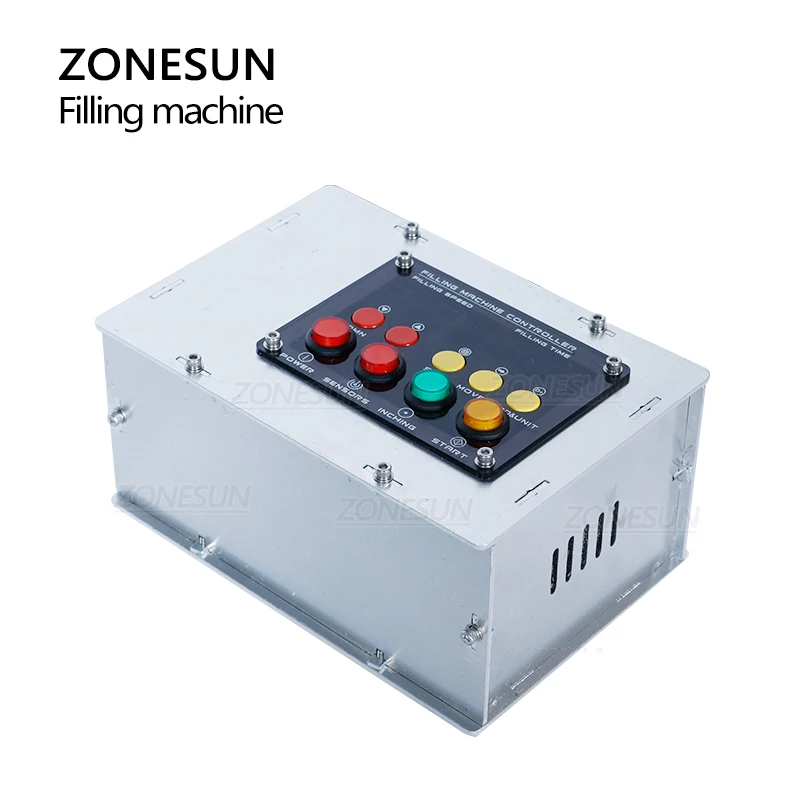

5.Microcomputer control system, the highest timing accuracy reaches 0.1 second.

Notice:

1. The load that conveyor can bear must be within kg.

2. It is better that the distance between electric eye and bottle is within 1cm.

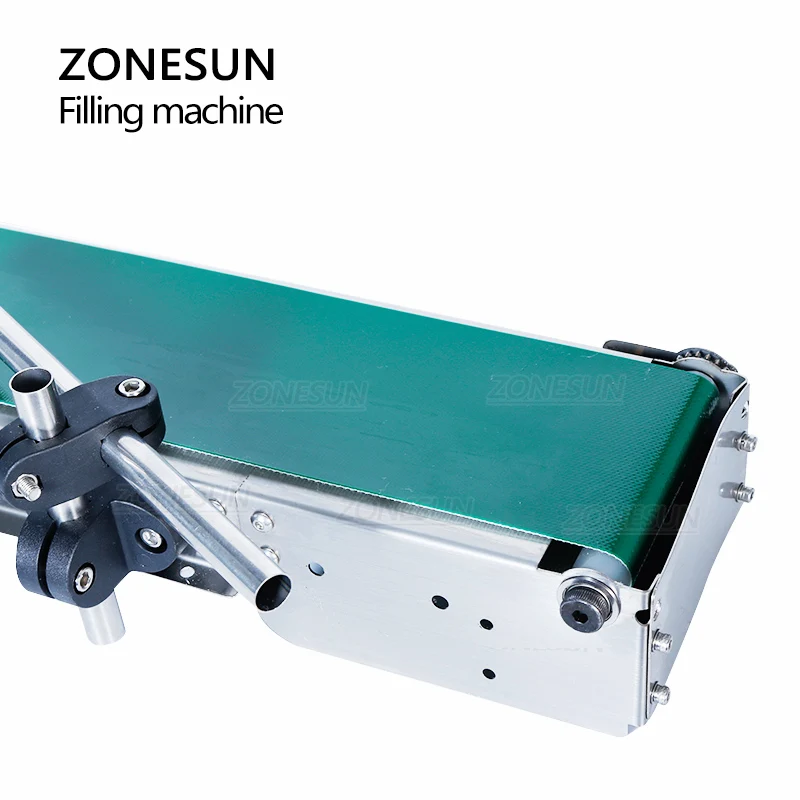

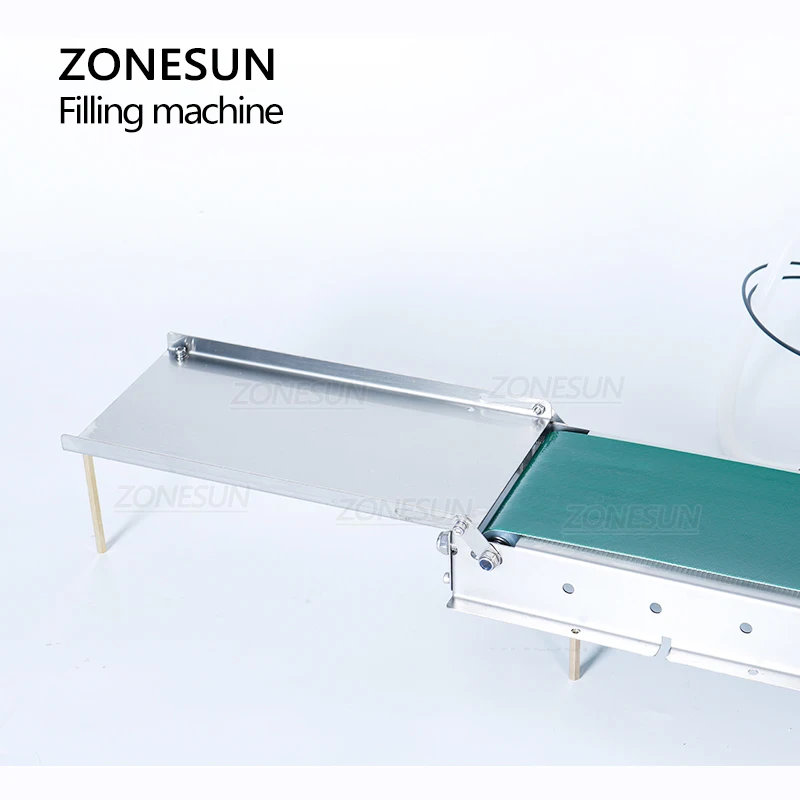

Conveyor installation and commissioning instructions:



1.Insert the conveyor control cable,install copper columns and receiving tray,insert the U-shaped clip ,T-bracket and U-shaped clip ,tight the screws slowly to ensure that the bracket does not shake.
2.Install the support rod,bracket,prepare to connect the filling machine

3.Install the sensor,and inlet and outlet pipes,adjust the sensitivity of the sensor,the bottle will be filled automatically.

4.Adjust the water outlet to match the height of the bottle,comfirm the alignment of the water outlet and the bottle mouth form different angles.
5.Adjust the bottle guide rod so that the bottle just passes the sensor.
6.Start-up trial operation,after adjustment,you can start working.
